Distribution Transformer

Dry type voltage transformer - single and three phase transformer:

	There are air flows between coils from layer to layer and between coils to core, thus heat escapes quickly, and temperature rises lower.
	There are no flammable insulating material on the coil surface and between the layers coils to avoid the fire hidden danger.
	Small volume, lightweight and good workmanship.
	After vacuum pressure impregnating, the whole transformer is moisture proof and mildew proof.
	Lower audio-noise.

Technical Data:

Standard Compliance	: IEC60076
Primary voltage	: 220V, 380V, 400V, 660V
Secondary voltage	: 105V, 190V, 220V
Capacity	: Up to 60 KVA
Frequency	: 50-60 Hz
Thermal Class A or B	: < 55°C - 80°C
Maximum ambient temperature	: 55°C - 80°C (rise)
Connection symbol	: Ddn 11 or other
Winding Material	: Copper
Silicon Steel	: Good quality, non-grained oriented and low loss grained oriented silicon steel
Insulation class	: Class F or H.

Technical Specifications:

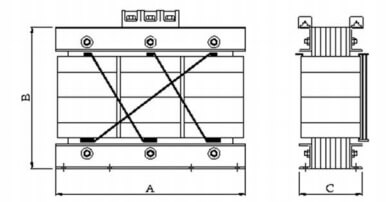

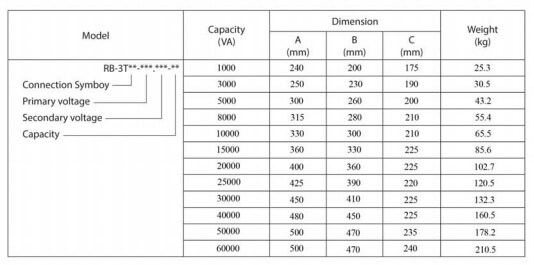

Dimensions and weights: Dimensions and weights indicated in the table above are provided as an example for three phase transformer.

Without enclosure housing (IPOO):

- They apply to transformers with electrical characteristics shown in the previous table.

- For other voltages, impedance voltages and dual-voltages, weights and dimensions are different.

Technical Data:

Standard Compliance	: IEC60076
Primary voltage	: 120V, 220V, 380V, 400V, 600V
Secondary voltage	: 12V, 36V, 110V, 220V, 230V
Capacity	: Up to 10 KVA
Frequency	: 50-60 Hz
Thermal Class A or B	: < 55°C - 80°C
Maximum ambient temperature	: 55°C - 80°C (rise)
Winding Material	: Copper
Silicon Steel	: Good quality, non-grained oriented and low loss grained oriented silicon steel
Insulation class	: Class F or H.

Technical Specifications:

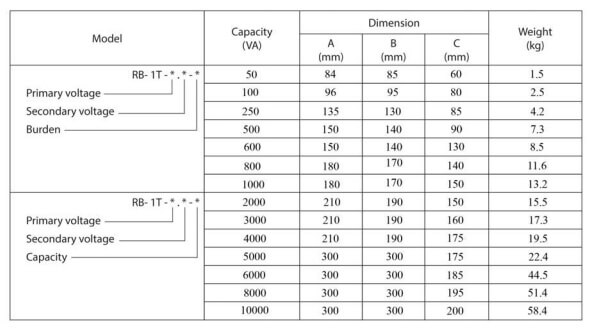

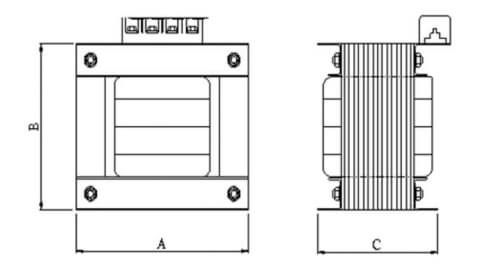

Dimensions and weights: Dimensions and weights indicated in the table above are provided as an example for primary single voltage transformer.

Without enclosure housing (IPOO):

- They apply to transformers with electrical characteristics shown in the previous table.

- For other voltages, impedance voltages and dual-voltages, weights and dimensions are different.
