Current Transformer

High quality toroidol and secondary winding are coating by the epoxy, giving the excellent mechanical strength.

Epoxy Resin Coating Current transformer

	A high impact flame retardant coated case reduces risk of damage.
	Busbar or steel sheet mouting hardware supplied.
	Wide range of apertures
	Non standard ratio and secondary current available on request.

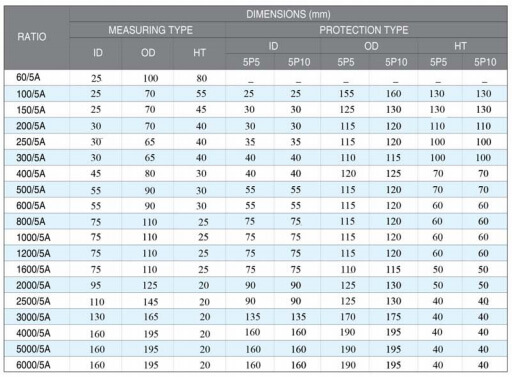

phe M&P series are complied with BS 7626 and IEC 185. The technical characteristic as follows:

	Primary current: 60A to 6000A.
	Secondary current: 5A or 1A
	Maximum voltage: 0.66 kV
	Test voltage: 3 kV/min
	Frequency: 50 ~ 60 Hz
	Burden: 5VA to 30VA
	Class: Measuring CTs: 0.5, 1, 3 Protection CTs: 5P, 10P
	Short time thermal current: lth = 60ln
	Dynamic rated current: ldyn = 2.5lth
	Standard accuracy limit factor: 5, 10, 15
	Operating temperature: -5oC to 40oC

* Other characteristics can be made on request

	Measurement & Protection Type.
	Insulation Class “B”.
	Standard amd special core dimension, terminal arrangements and output leads.

	Measurement & Protection Type.
	Insulation Ckass “B”
	Standard and special core dimesion, terminal arrangements and outputs leads

	Measurement & Protection Type.
	Insulation Class “B”.
	Standard amd special core dimension, terminal arrangements and output leads.

High quality toroidol and secondary winding are coating by the epoxy, giving the excellent mechanical strength.

Epoxy Resin Coating Current transformer Square type

	A high impact flame retardant coated case reduces risk of damage.
	Busbar or steel sheet mouting hardware supplied.
	Wide range of apertures.
	Non standard ratio and secondary current available on request.

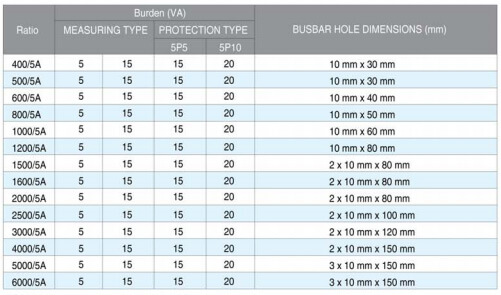

The M&P series are complied with BS 7626 and IEC 185.The technical characteristic as follows:

	Primary current: 400A to 6000A.
	Secondary current: 5A or 1A
	Maximum voltage: 0.66 kV
	Test voltage: 3 kV/min
	Frequency: 50 ~ 60 Hz
	Burden: 5VA to 30VA
	Class: Measuring CTs: 0.5, 1, 3 Protection CTs: 5P, 10P
	Short time thermal current: lth = 60ln
	Dynamic rated current: ldyn = 2.5lth
	Standard accuracy limit factor: 5, 10, 15
	Operating temperature: -5oC to 40oC

* Other characteristics can be made on request
